Understanding UL 891, EUSERC, & Annex G: Key Switchboard Certifications

Devin Toohey
X Min Read
4.30.2025
Switchboards

When you're working on a commercial or industrial project, choosing the right switchboard isn’t just about voltage and amperage; it’s also about safety and compliance. That’s where certifications come in.

Switchboard certifications are there to show that a switchboard has been tested and built to meet national safety standards — and that it’s ready for real-world use. These standards didn’t appear overnight (UL 891, for example, has been around for decades), and they aren’t arbitrary, either: They’re the result of decades of engineering standards designed to keep switchboard operation as safe as possible.

If a switchboard isn’t properly certified, it can lead to failed inspections, utility rejections, or worse, safety risks on the job site. Knowing which certifications apply to your project helps you avoid those issues and keeps everything moving forward.

In this guide, we’ll walk through three key certifications (UL 891, EUSERC, and Annex G) so you know exactly what to look for when it’s time to order switchgear.

UL 891: The Backbone Certification for Switchboards

UL 891 is a safety standard developed by Underwriters Laboratories (UL) that specifies requirements for low-voltage, dead-front switchboards rated up to 1,000 volts AC. These switchboards are used to distribute electrical power throughout large buildings — think commercial facilities, schools, warehouses, or industrial plants.

The “dead-front” part refers to a safety design where no live electrical parts are exposed on the front side, so anyone operating or working near the switchboard won’t come into direct contact with energized components, which significantly reduces the chance of electrical shock.

What Does UL 891 Cover?

UL 891 covers every critical aspect of switchboard design, from conductor spacing to the kinds of stress components must be able to withstand under fault conditions.

Design Parameters

UL 891 spells out how a switchboard should be physically laid out to minimize electrical hazards like arcing or shorting. For example, it sets minimum spacing requirements between conductive parts. That way, there’s less risk of a short circuit from electricity jumping between conductors, even under heavy load.

You’ll also need to consider access type. If you’re limited on space, a front-access switchboard might be the right call — it’s designed to be installed against a wall and fully serviced from the front. But if you have room behind the board, rear-access models allow easier maintenance and better access to internal components.

Then, there’s the enclosure rating. Indoor switchboards generally don’t need heavy-duty protection, but if you’re placing one outdoors — or even in a dusty or humid environment — you’ll want an enclosure with the right NEMA rating. For instance, NEMA 3R enclosures protect against rain and ice formation, which is crucial if you’re installing a unit on a rooftop or outside a utility room.

Safety Testing Requirements

To make sure a switchboard holds up under real-world conditions, UL 891 includes a series of performance tests that simulate electrical faults, voltage surges, and heat buildup.

Take short-circuit testing, for example. During a fault, the current can spike to tens of thousands of amps. UL 891 requires manufacturers to test how well their switchboards can handle these conditions without failing. If the busbars or enclosure can’t withstand the force, they won’t pass.

Another critical test is the dielectric voltage withstand test — sometimes called a “hi-pot” test. This checks that the insulation inside the switchboard can resist high voltages without breaking down. It’s a way to catch weak insulation before it becomes a safety hazard.

Then, there’s temperature rise testing. As current flows through a system, it generates heat. UL 891 requires manufacturers to verify that the internal temperature stays within safe limits, even under max load. This helps prevent premature wear, overheating, and fire risk.

Material and Construction Standards

When it comes to what goes into a UL 891 switchboard, you can’t just use any parts lying around. All components — wires, busbars, breakers, terminals — have to be UL-recognized and meet specific requirements for conductivity, insulation, and flammability.

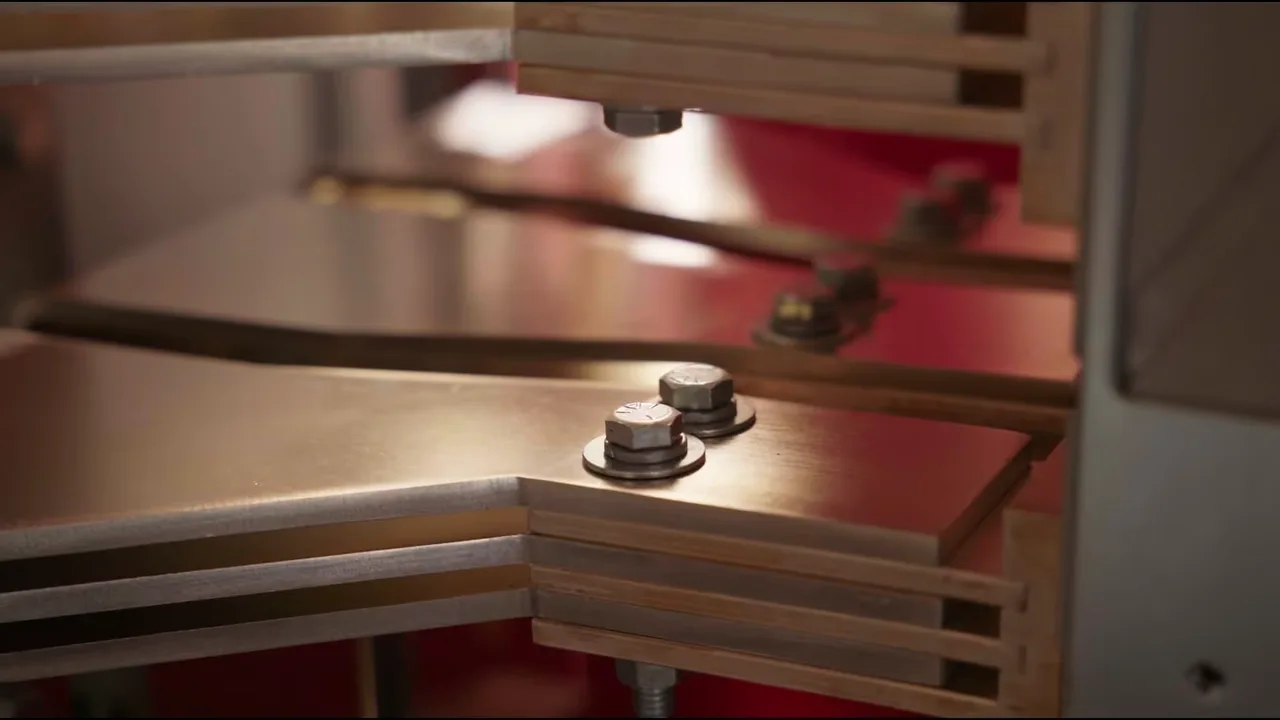

For instance, the copper or aluminum used in busbars must meet conductivity benchmarks to carry current efficiently without overheating. Insulating materials must not only isolate electricity but also resist fire and mechanical stress.

You also have to think about grounding and bonding. UL 891 requires every exposed metal part to be grounded properly so that if there’s a fault, the current is safely directed to ground instead of creating a shock hazard. And don’t forget labeling — each switchboard must include nameplates showing essential info like voltage ratings, current capacity, and wiring diagrams. That’s not just for show — it’s critical when you or someone else needs to troubleshoot or service the unit safely.

Benefits of UL 891 Compliance

So, why does this matter to you in the field? For starters, UL 891-listed switchboards make permitting simpler. Most local inspectors and Authorities Having Jurisdiction (AHJs) know and trust the UL mark, which can save you time during inspections and reduce the chance of last-minute redesigns or rework.

Beyond compliance, you’re also lowering your liability. Using equipment that meets these strict requirements means you’re less likely to deal with failures, safety incidents, or code violations. That’s good news for your project’s budget and your reputation.

Plus, you’re building in long-term safety for the people who’ll be interacting with the switchboard — whether it’s operations staff flipping breakers or a technician opening the panel in five years to run diagnostics. With UL 891, you know the design was tested to handle real-world conditions.

EUSERC: Utility Compliance Comes Standard

EUSERC stands for the Electric Utility Service Equipment Requirements Committee, and it refers to a cooperative effort between more than 90 utility companies across the western and central United States. The goal of this committee is simple but crucial: create standardized design and installation guidelines for service entrance equipment — the parts of an electrical system where power from the utility company enters a building.

In simple terms, EUSERC creates a rulebook that helps ensure your gear is safe, reliable, and ready for utility inspection. When you follow those standards, utility companies can connect your switchboard faster — without needing custom workarounds or last-minute fixes.

Where Does EUSERC Apply?

You’ll most often run into EUSERC requirements in states like California, Texas, Colorado, Oregon, and Washington, but other regions may adopt parts of the standards, too. In fact, it’s becoming increasingly common for utility companies — even outside the traditional EUSERC zone — to require similar specs.

So, how do you know if EUSERC applies to your job? Easy. Check with the local utility. Their service manual will usually say whether they follow EUSERC standards or a variation of them. Some utilities publish their own design guides based on EUSERC, like Southern California Edison, PG&E, or San Diego Gas & Electric. It’s smart to confirm before you order or install anything.

Design Implications of EUSERC Compliance

EUSERC affects more than just what brand of switchboard you pick. It shapes how the whole setup is built — from the dimensions of enclosures to how accessible the compartments are for utility workers.

  • Specific layout requirements: EUSERC specifies exactly how to lay out service entrance components. For example, meter compartments must be tool-free so utility crews can open them without special tools. That means doors with latches instead of screws and safe access points that don’t require working around energized parts.

  • Standardized dimensions and labeling: EUSERC sets rules around how big certain compartments should be and how they need to be labeled. That might sound nitpicky, but it actually makes a huge difference. Let’s say you’re using a 320-amp meter socket. EUSERC may require that it sits at a certain height, has a minimum enclosure depth, and includes specific interior labeling. Following those details helps ensure that when the utility inspector shows up, they’re not confused — or worse, forced to reject the equipment.

What Happens If You Don’t Follow EUSERC?

Skipping EUSERC compliance isn't just a slap on the wrist. It can cost you real time and money.

Equipment Rejection

If the equipment doesn’t match the utility’s requirements, they may refuse to connect power to the site. That could halt your schedule for days — or weeks — until you sort it out.

In some cases, you’ll need to remove and replace the entire switchboard. Field modifications might not be allowed. And even if they are, those changes can be expensive, time-consuming, and still might not pass inspection.

Delays and Added Costs

Even if your switchboard isn’t rejected outright, non-compliance can derail your entire project. Here’s what that might look like:

  • Project delays while waiting for replacements or design revisions
  • Costly fieldwork to bring equipment up to spec
  • Rush charges for a new board
  • Inspection delays caused by rework, extending timelines for the entire site

What starts as an engineering issue can quickly become a construction, scheduling, and budget nightmare.

What You Can Do to Stay on Track as a Project Manager

You don’t have to be a EUSERC expert to avoid problems. But you do need to plan smart. Here’s how:

1. Double-Check the Utility’s Requirements First

Before you spec or order anything, confirm whether the local utility enforces EUSERC standards. Check their website or reach out to your utility contact. Look for service manuals or design bulletins — they usually spell out the rules clearly.

If your utility has its own EUSERC-based standard (like PG&E or SCE), make sure your equipment matches its exact requirements. Some utilities include handy diagrams and layout specs that you can share directly with your manufacturer.

2. Choose Pre-Approved, EUSERC-Compliant Gear

Plenty of trusted switchboard manufacturers offer EUSERC-compliant products, including models specifically built for certain utility service areas. These boards are designed to meet utility specs right out of the box, so there’s no guesswork.

That means less time spent researching, fewer revisions, and more peace of mind during inspection.

Some manufacturers will even label their products as “PG&E-ready” or “EUSERC-SCE,” so you know exactly what you’re getting.

3. Work With Manufacturers Who Know the Standards

Not every switchboard vendor understands the ins and outs of EUSERC. When choosing a manufacturer, ask if they’ve done work in your region and whether they’ve successfully passed utility inspections.

Look for partners who can provide utility-specific drawings, help you verify compliance, and walk you through any design tweaks. The best manufacturers will know what your utility expects — and how to meet those expectations without over-engineering the solution.

Annex G: Design Flexibility Within the UL Ecosystem

If you're working with UL 891 switchboards, it's important to understand Annex G — a part of the UL (Underwriters Laboratories) 891 standard, which outlines safety and performance requirements for dead-front switchboards.

Annex G allows manufacturers to make certain variations to a switchboard’s design without having to complete a full re-evaluation by UL every time they make a change. This is possible because Annex G is built around the idea of pre-approved component systems and templates. As long as the design changes stay within those approved boundaries, the UL certification remains valid.

When is Annex G Relevant?

Annex G becomes relevant when a switchboard design doesn't fit a single fixed configuration. It’s especially useful in two main scenarios:

1. Custom Layouts

Sometimes, a project may require a switchboard layout that deviates from standard factory configurations. For instance, the switchboard may need to fit a unique footprint, include additional metering options, or have components positioned differently to match specific site conditions.

Using Annex G, a manufacturer can adapt a switchboard’s layout to meet those needs as long as the changes fall within a UL-verified system of components and design rules.

2. Modular or High-Volume Production

If you're working with a manufacturer who builds switchboards in volume — especially using modular designs — Annex G helps reduce the need for repeated certification tests. As long as the modules and their combinations were previously evaluated, new switchboards using those modules can be assembled in various configurations without re-certification.

This is common with OEMs (original equipment manufacturers) who supply customizable switchboards across a range of projects but rely on a consistent internal design structure.

Benefits of Using Annex G Designs

Annex G is often used to improve project timelines and reduce costs without compromising safety or certification. Some of the main benefits include the following:

1. Reduced Certification Overhead

UL testing and certification can be time-consuming and expensive. With Annex G, once the overall design system has been evaluated, you don’t have to go back to UL for each layout change that stays within the system’s limits. This avoids repeating costly testing procedures for every minor variation.

2. Faster Design-to-Production Turnaround

If your project timeline is tight, working within Annex G can help. You can choose from a library of already-certified options rather than wait for new approvals. This can speed up the engineering, manufacturing, and inspection process.

3. Late-Stage Flexibility

It’s common for project specs to shift during construction. Maybe a client requests a different metering setup, or site constraints require a layout change. Annex G allows for some level of adjustment even after the initial design is complete, assuming the changes stick to the allowed design rules.

Considerations and Limitations

  • Pre-approved templates: Designs must adhere to pre-approved templates and component families to qualify.

  • Potential need for custom evaluation: Unique features, such as specialized metering setups or materials, may still require custom evaluation.

Why Annex G Matters to Buyers

Requesting Annex G-qualified designs helps you make sure that you are working within UL compliance while also allowing for necessary customization. It also indicates that the switchboard has been designed with certification efficiency in mind, reducing the risk of delays or non-compliance issues.

Harmonizing All Three: What to Look for When Sourcing Switchboards

When you're sourcing switchboards, it's not enough to check for a single certification. In many projects, especially those involving utility coordination or custom layouts, you’ll need to make sure the switchboard meets three key criteria: UL 891 compliance, EUSERC requirements, and Annex G design flexibility.

Understanding how these standards relate — and where they don’t overlap — can help you avoid issues during submittals, inspections, or installation.

UL 891 and EUSERC: Not Always a Package Deal

UL 891 is a national standard that applies to switchboard construction, safety, and performance. EUSERC, on the other hand, sets additional guidelines for how metering and utility service equipment should be configured — often based on local utility requirements.

Some switchboards meet UL 891 but do not satisfy EUSERC criteria. If your project is in a jurisdiction where the local utility follows EUSERC standards, make sure the equipment you're sourcing is specifically designed and labeled as EUSERC-compliant.

Annex G Compatibility Depends on the Design

Annex G provides flexibility within the UL 891 framework, but that doesn’t guarantee it works with all EUSERC configurations. Because EUSERC has specific requirements for things like meter placement, wiring space, and access clearances, some modular or reconfigurable designs allowed under Annex G may not align with EUSERC’s fixed layout rules.

Before relying on Annex G for design changes, confirm that:

  • The switchboard model is approved for Annex G modifications.
  • The modifications you’re planning won’t conflict with EUSERC specifications.

This is especially important when you're adapting a standard design to a new layout that still needs to pass both UL and utility inspection.

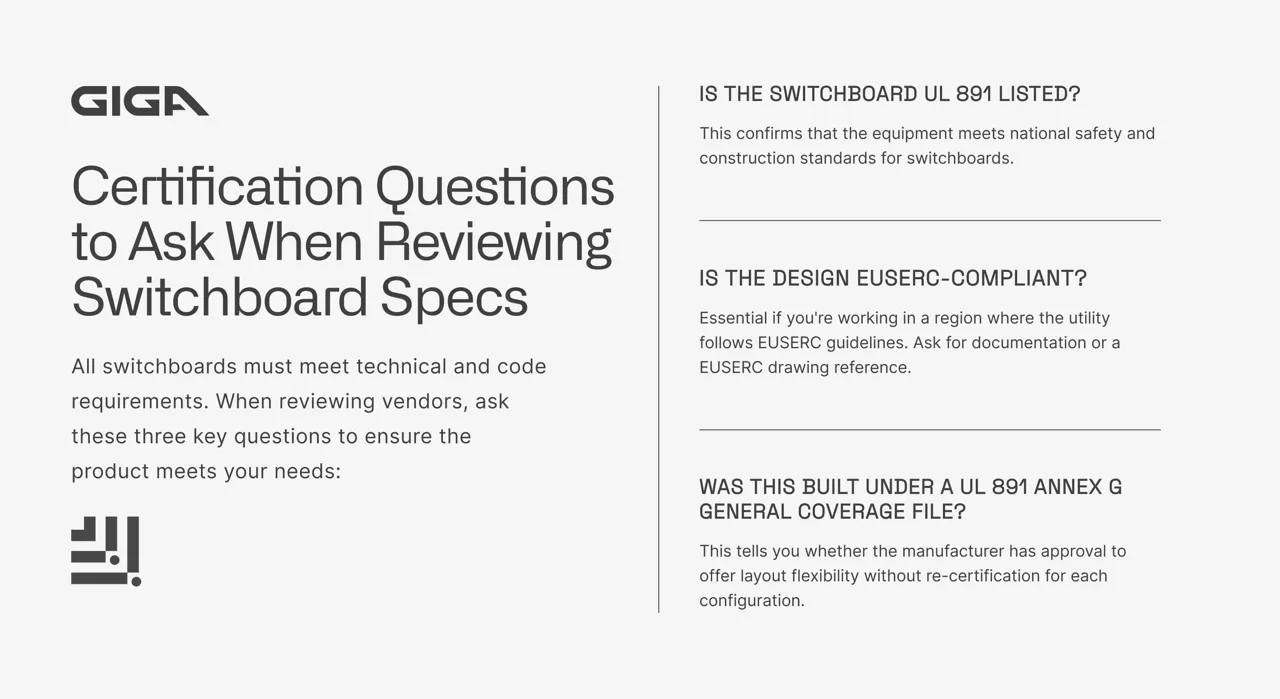

What to Ask When Reviewing Switchboard Specs

To make sure the switchboard meets your technical and code requirements, ask these three key questions:

  • Is the switchboard UL 891 listed? This confirms that the equipment meets national safety and construction standards for switchboards.
  • Is the design EUSERC-compliant? Essential if you're working in a region where the utility follows EUSERC guidelines. Ask for documentation or a EUSERC drawing reference.
  • Was this built under a UL 891 Annex G General Coverage file? This tells you whether the manufacturer has approval to offer layout flexibility without re-certification for each configuration.

If a distributor or manufacturer can clearly answer all three, you’re in a better position to avoid delays, rejections, or last-minute redesigns.

Why It Helps to Work With Certified Manufacturers

Choosing a manufacturer who builds to UL 891, incorporates EUSERC-compliant designs, and uses Annex G-approved systems can save time during both the design and construction phases.

Here’s what that alignment offers:

  • Fewer compliance issues: The equipment is more likely to pass inspections from both code officials and utility representatives.
  • Simplified coordination: With compatible standards, there’s less back-and-forth between the design team, utility, and fabricator.
  • More layout flexibility: When Annex G is part of the design, it’s easier to make changes without delaying production.

Whether you're planning a high-volume housing development or a one-off custom build, keeping all three standards in mind helps ensure your switchboard fits the project, the utility, and the code.

Conclusion: Certifications as a Sourcing Strategy

Certifications are more than just technical checkboxes — they shape how successfully your project moves from planning to installation. When you understand how UL 891, EUSERC, and Annex G work together, you can make smarter decisions that save time, reduce risk, and keep your project on track.

Want help figuring out which switchboard certifications matter most for your project? Reach out to the experts at Giga Energy for clear, practical guidance.
