What Are Transformer Bushings, and What’s Their Function?

The rapid growth of data centers and increasing electrification of U.S. infrastructure have put unprecedented demands on power distribution systems. In these high-stakes environments, transformer bushings play a critical role. These components do more than just manage electrical stress; they're fundamental to the physics of power distribution itself.

This article will break down the key principles behind bushing design and operation. We’ll look at how bushings work, and why they are crucial for keeping power systems safe and operational.

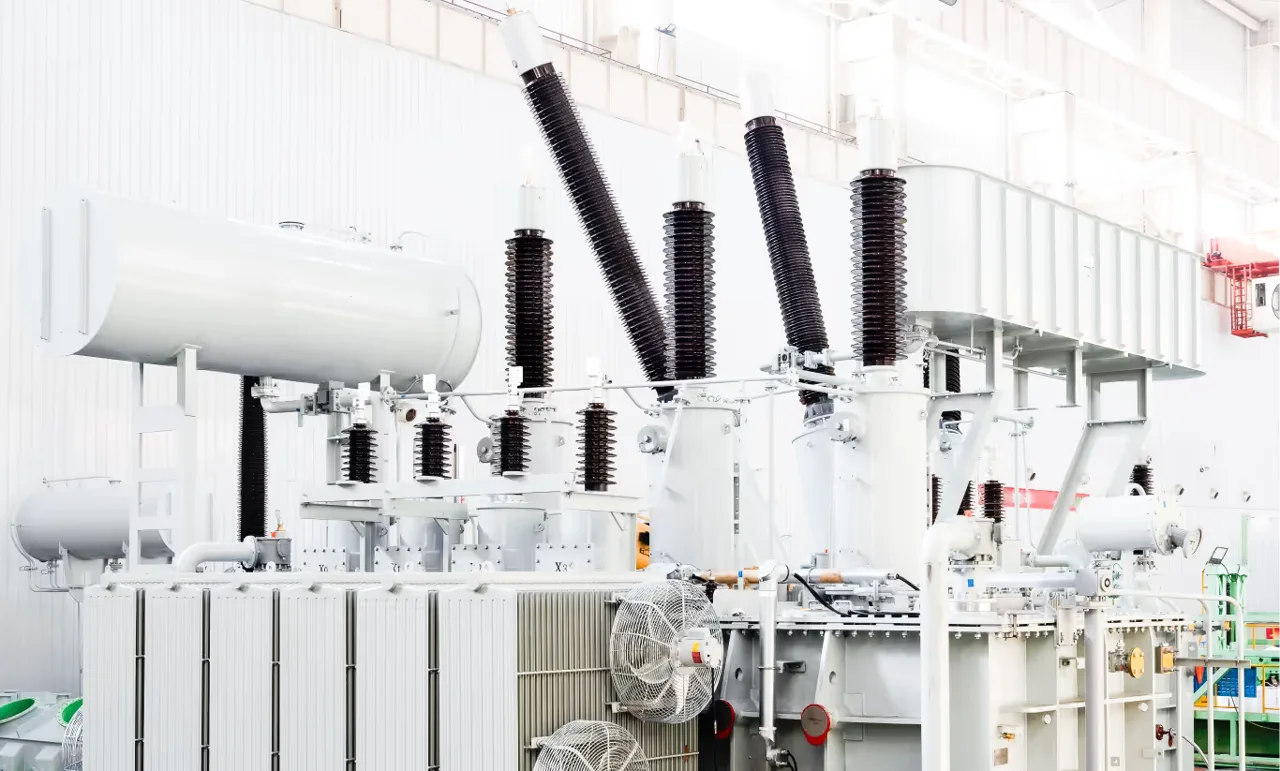

What Is a Transformer Bushing?

Electrical transformers are constructed such that the critical components of the transformer are contained in a metal case. These components provide the essential functionality of isolation and/or conversion between different voltage levels. To connect the transformer to an external electrical system, the current must be routed through the casing. Accomplishing this task and averting electrical faults requires the use of bushings.

The transformer bushing acts like a protective tube, surrounding the electrical conductor (materials, such as copper or aluminum, that allow electricity to flow easily due to their low resistance) with layers of insulation to keep the high-voltage current safe and contained. It prevents faults or electrical arcing, which allows the transformer to work efficiently and safely.

What Does a Transformer Bushing Do?

Transformer bushings serve two main purposes: they insulate and they guide electrical currents.

Insulating Electricity

All electrical power flow through conductors carries a significant risk: inadvertent discharge to ground. Also known as “ground faults,” these hazardous events may cause arcing, fires, or explosions. Bushings provide the insulating protection necessary to guard conductors so that power flow occurs safely.

Guiding Electrical Flow

In addition to providing insulation, bushings also guide electrical current between the transformer’s internal windings and the external power lines. They do this by allowing a conductor to pass safely through the transformer’s grounded casing without making direct contact. Inside, the bushing contains alternating layers of conductive and insulating materials. These layers use a method called capacitive grading, which helps distribute electrical stress more evenly along the length of the bushing. This prevents the buildup of hotspots that could lead to failure.

Think of a bushing as a carefully designed bridge: It ensures that electricity moves easily from one side of the transformer to the other without touching the grounded surface of the casing, which would disrupt the flow and create safety risks.

Controlling Stress

Handling high-voltage electricity places immense stress on the bushing's materials. Over time, this can lead to wear, overheating, or even failure. To counteract this, advanced bushing designs include stress-control layers or utilize materials with high thermal resistance and low electrical loss. These features distribute electrical stress evenly and minimize the risk of breakdowns.

Simply put, these design enhancements ensure that the bushing can handle the immense power it manages every day, extending its lifespan and reducing the likelihood of costly transformer downtime.

Types of Transformer Bushings

When choosing the right transformer bushing, there are a lot of aspects to consider, including the voltage, environment, and even the transformer type. Transformer bushings are classified according to their materials, usage methods, and voltage.

Based on Materials

Transformer bushings fall into one of two material categories:

• Solid bushing: These transformer bushings are made from sturdy materials like porcelain or resin. They have a simple design and are good for lower-voltage systems. Solid bushings provide basic insulation, meaning they are not as effective for very high voltages.
• Condenser bushing: What sets condenser bushings apart is how they manage electrical stress. While all bushings use insulating and conductive materials, condenser bushings arrange these materials in a specific, layered design that gradually reduces voltage. This makes them a better fit for high-voltage systems. They’re more reliable than standard bushings, but also more complex and more expensive.

Based on Usage

Bushings can also differ based on how they are used.

• Dead-front bushings: These bushings are fully covered to prevent accidental contact with high-voltage parts, making them safer for residential or urban areas.
• Live-front bushings: With exposed parts for easier access during maintenance, live-front bushings are more common in areas where there’s a need to have frequent access to connection. They are efficient and easier to maintain, but they require extra precautions to ensure safety.

Based on Voltage

Transformer bushings are also classified according to the maximum voltage they can handle.

• High-electricity transformer bushings: Some bushings are built to handle high-voltage electricity, which can be anything above 1,000 volts. These bushings are carefully designed to prevent electrical breakdowns even under intense stress.
• Low-electricity transformer bushings: There are other bushings that are meant for low-voltage systems, where the electricity levels are less intense. These bushings are simpler and more affordable but still provide the necessary protection.

5 Key Parts of a Transformer Bushing

Transformer bushings may look simple from the outside, but they are made of five critical parts that work together to ensure safety and efficiency.

1. The Central Conductor
   This is the part that carries the electricity. It’s usually made of highly conductive metals like copper or aluminum to ensure the electricity flows smoothly.
2. Insulating Layers
   One of the key functions of a transformer bushing is to manage the immense stress caused by handling high-voltage electricity. Over time, this stress can wear down the bushing's materials, potentially leading to overheating or even failure. To address this challenge, modern bushing designs incorporate stress-control layers or rely on materials with high thermal resistance and low electrical loss. These innovations evenly distribute electrical stress across the bushing, minimizing the risk of breakdowns. By effectively managing this stress, these design features play a crucial role in extending the bushing's lifespan and reducing the chances of costly transformer downtime.
3. Outer Casing
   The outside of the bushing is often made from durable materials like porcelain or polymer. This casing protects the internal parts from weather, dirt, and mechanical damage.
4. Mounting Hardware
   This includes the flanges or fittings that attach the bushing to the transformer. These parts need to be strong enough to handle the weight of the bushing and withstand vibrations.
5. Cooling Features
   In some bushings, especially those used in high-voltage systems, cooling materials like oil or gas are added to keep the bushing from overheating. These features improve efficiency and extend the life of the bushing.

Why Are Transformer Bushings Important?

Transformer bushings play a critical role in keeping electrical systems running smoothly and safely. Without them, transformers would be much more prone to failures and accidents. Transformer bushings improve the safety, reliability, efficiency, and longevity of transformers.

• Safety: Electricity at high voltages can cause fires, explosions, or shocks if it arcs or discharges from the transformer. Transformer bushings hold the electricity inside and prevent it from leaking out. They keep high-voltage electricity safely contained, which is especially important in areas like residential neighborhoods where transformers are close to people.
• Reliability: By preventing electrical faults, bushings help transformers operate without interruptions. A reliable transformer means fewer power outages and less downtime for homes and businesses.
• Efficiency: Bushings reduce the chance of faults, like sparks or overheating, that can stop a transformer from working. A functional transformer bushing will reduce energy waste and keep the transformer running at optimal performance.
• Longevity: Transformer bushings are designed to handle the stress of high-voltage electricity, extreme weather, and daily wear and tear. This durability helps extend the life of the transformer and reduces maintenance costs.

Transformer bushings are critical, but they have a high failure rate. Choose a high-quality option that's appropriate for your needs, and make sure you can monitor its activity.

5 Considerations When Choosing the Right Transformer Bushing

Selecting the right transformer bushing isn’t one-size-fits-all. It depends on how the bushing will be used, where it’s going, and what kind of performance you need. Here are five real-world factors to help guide your decision:

1. Voltage Requirements -The voltage rating has to match the job. Utilities working with transmission and distribution lines typically need bushings built for high-voltage use. On the other hand, commercial and industrial sites often use lower-voltage bushings that don’t require the same level of stress control.

2. Environmental Conditions - If the transformer sits outdoors, the bushing needs to handle weather extremes, moisture, and pollution. In contrast, indoor transformers may allow for a more compact design, but still need durability—especially in industrial environments with heat or dust.

3. Material and Design Choices - Porcelain bushings are rugged and reliable but heavy and more fragile in impact scenarios. Polymer bushings are lighter and often preferred where weight, flexibility, or resistance to chipping is a concern. Think about the trade-offs based on how the bushing will be handled and maintained.

4. Ease of Maintenance - Some bushings are easier to inspect, clean, or replace than others. If you’re working in a setting where downtime is costly, opting for a bushing that’s service-friendly can save money and hassle over time.

5. Compliance With Standards- Although transformer bushings typically make up only 5-8% of a transformer’s total cost, their failure can lead to catastrophic consequences, both financially and in terms of safety. To mitigate risks, you need to make sure your bushings meet all relevant industry standards and regulations. This includes safety certifications and performance benchmarks established by organizations such as the International Electrotechnical Commission (IEC) or the Institute of Electrical and Electronics Engineers (IEEE).

Key Takeaways on Transformer Bushings

While transformer bushings may seem like a small component, they play a vital role in preventing catastrophic failures and ensuring reliable power distribution. At Giga Energy, we design our transformers to overcome even the toughest environmental challenges.

I collaborate closely with engineering teams to build custom transformers with bushings designed specifically for your needs. Contact our team to learn more about how Giga Energy can help you.
